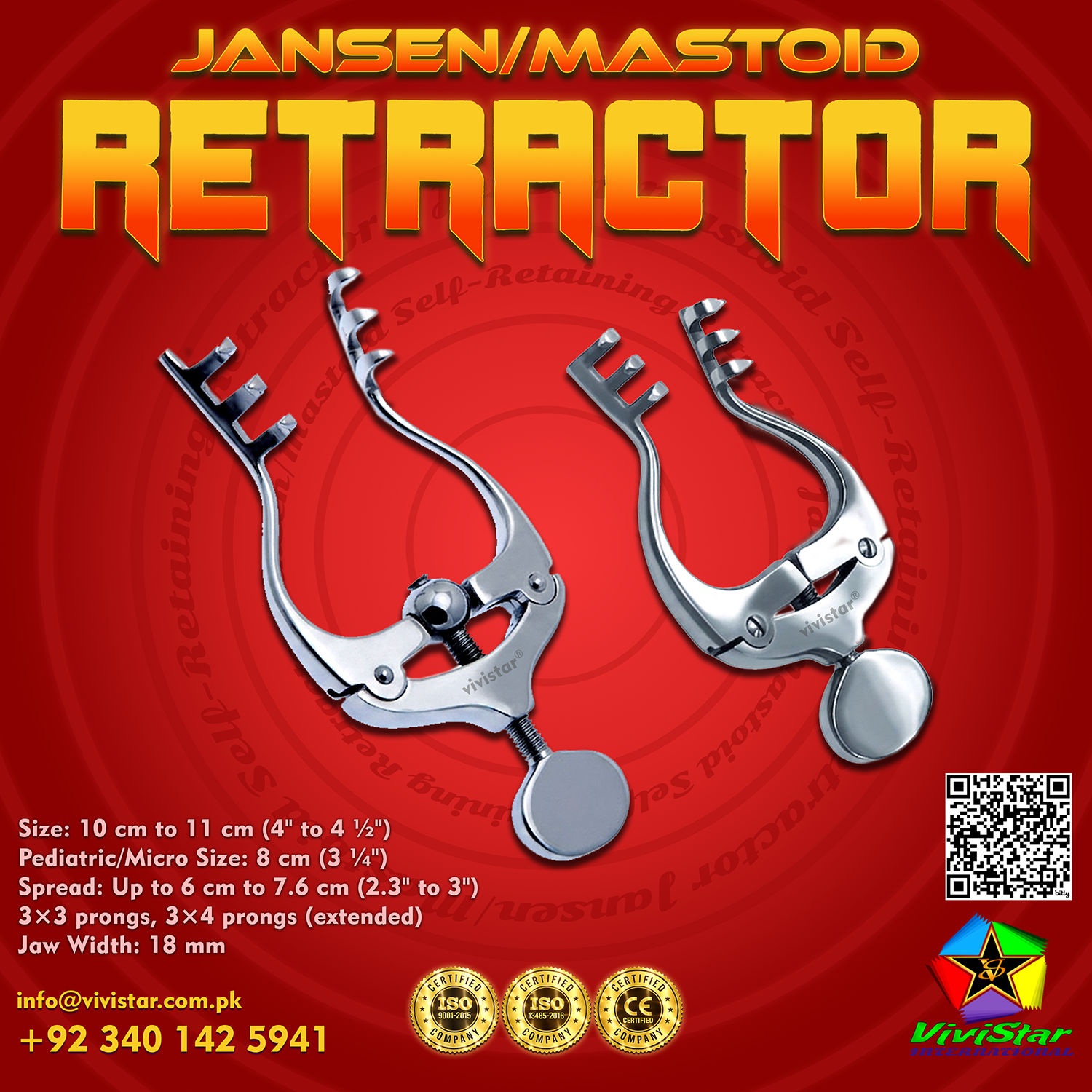

Jansen/Mastoid Retractor – Essential for ENT & Neuro-Micro Surgery

Self-Retaining Precision for ENT, Otology, and Micro-Surgical Access

The Jansen/Mastoid Retractor is a specialized, compact, self-retaining wound retractor engineered for procedures requiring stable, highly controlled, small-scale surgical exposure. Primarily utilized in otolaryngology for mastoidectomies, tympanoplasties, and myringoplasties, its low-profile architecture and incremental thumbscrew-locking mechanism also make it an indispensable asset in neurosurgery, spinal foraminotomies, and orthopedic micro-surgeries of the hand and foot.

By applying consistent lateral tension, this retractor eliminates the need for manual, assistant-dependent retraction, maintaining a perfectly static surgical field and freeing the surgeon’s hands for delicate microscopic maneuvers.

Technical Specifications

Overall Length: Standardized between 10 cm and 11 cm (4″ to 4 21”), making it ideal for narrow and crowded anatomical corridors.
Spread Range: A heavy-duty, smooth-turning thumbscrew mechanism allows a continuous, secure jaw opening of up to 6.0 cm to 7.6 cm (2.3″ to 3.0″).
Prong Arrays: Available in symmetrical 3×3 or asymmetrical 3×4 interlocking prong layouts to accommodate varying tissue densities.
Blade Dimensions: Standard prong width of 18 mm, with depth configurations spanning 10 mm to 16 mm.
Material: Forged from high-grade, biocompatible AISI 420 surgical stainless steel.
Reprocessing: Fully reusable, passivated, and designed to withstand high-temperature autoclave steam sterilization.

Available Variations & Specialty Design Tiers

To meet the rigorous demands of specialized surgical disciplines and sub-surface approaches, we provide several distinct variations of the Jansen platform:

Sharp vs. Blunt Prong Profiles:
- Sharp Prongs: Engineered to securely anchor into dense, tough structures like the mastoid periosteum, deep fascia, or scalp, completely eliminating instrument slippage under high tension.
- Blunt Prongs: Specially rounded tips designed for atraumatic retraction near fragile neurovascular bundles, parotid glands, or skin edges where structural crushing or tearing must be avoided.
Black Ceramic Non-Glare Coating: An optional premium ceramic overlay that provides an ultra-hard surface shell and entirely absorbs light. This eliminates distracting glare and hot spots under high-magnification surgical microscopes, surgical loupes, and intense fiber-optic headlamps.
Bayonet-Shaped / Angled Shanks: A structural variant featuring a stepped, bayonet-style arm contour. This design drops the screw-locking mechanism out of the primary axis of incision, maximizing the surgeon’s direct line of sight and tool clearance under an operative microscope.
Cross-Legged / Self-Locking Spring Configuration: Moving away from the mechanical thumbscrew, this variation utilizes an ergonomic cross-legged spring chassis that automatically applies outward pressure upon compression, streamlining rapid deployment in trauma or emergency exploratory settings.
Rigid One-Piece vs. Jointed/Articulated Arms: In addition to the standard rigid frame, we offer an articulated model featuring sub-joints along the retaining arms. This allows the prongs to bend into complex contours, facilitating custom retraction angles around asymmetrical bony prominences.
Titanium Micro Series: For ultra-delicate neurosurgical applications, components can be forged in high-tensile medical titanium. This reduces the instrument’s total weight by up to 45%, significantly minimizing the physical footprint and tactile gravity within deep cranial or spinal wounds.

Key Clinical Advantages

Localized Hemostasis: The powerful, uniform lateral pressure exerted by the expanding prongs compresses small capillary networks along the wound margins, reducing minor ooze and keeping the operative field clean.
Unobstructed Visualization: The gentle concave curvature of the retractor arms follows body contours seamlessly, keeping the mechanical joint safely clear of the incision opening.
Hygienic Solid-Box Hinge: Engineered with an open, accessible box lock and flush screws to prevent the accumulation of bio-burden and ensure effortless mechanical cleaning and reprocessing.
